Recessed lights in a mid-century ceiling

Quick answer

Slim LED wafer lights fit shallow ceiling cavities, which suits mid-century homes with low-slope roofs. Planning the layout around joists and beams is the key step.

Mid-century homes in Monterey Park often have low-slope roofs with little attic space, and some have exposed beams. That limits old-style recessed cans, but slim LED wafer lights work well.

Layout

Light the tasks: counters, reading areas and hallways.

Ceiling cavities

Wafer lights need only an inch or two of depth.

Beamed ceilings

Lights between beams need careful wire routing.

Before cutting, we locate joists, ducts and wiring.

Dimmers

LED-compatible dimmers avoid flicker.

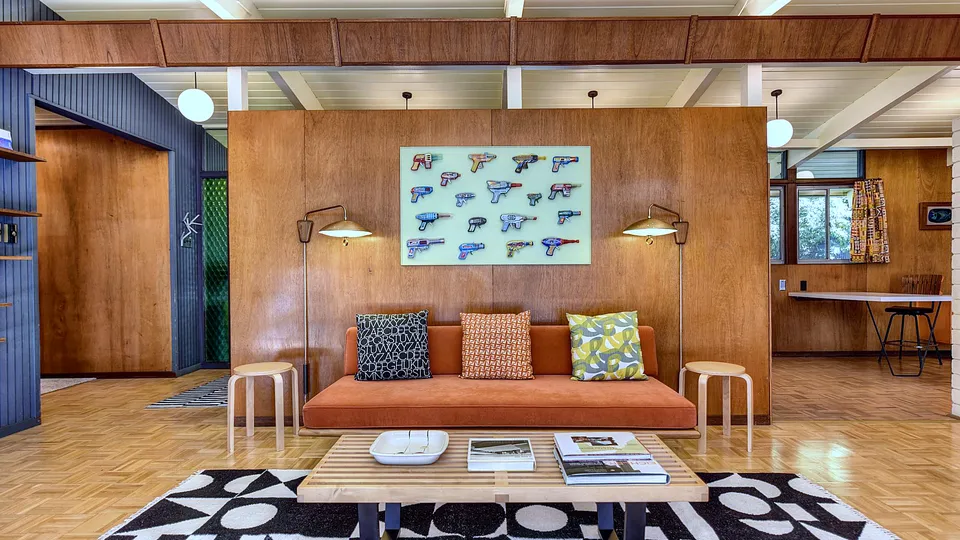

Why mid-century ceilings are different

Many Monterey Park homes from the 1950s and 1960s have low-pitched or nearly flat roofs, with only a shallow cavity between the ceiling and the roof deck. Some have tongue-and-groove wood ceilings or exposed beams in the living room. Traditional recessed cans needed several inches of depth and often had to be rated for insulation contact. Slim LED wafer lights avoid most of that.

Planning around the room

• Kitchens: place lights over the front edge of the counters so you are not working in your own shadow.
• Living rooms with glass walls: keep lights back from the windows so they do not reflect in the glass at night.
• Hallways: a few evenly spaced lights rather than one bright fixture.

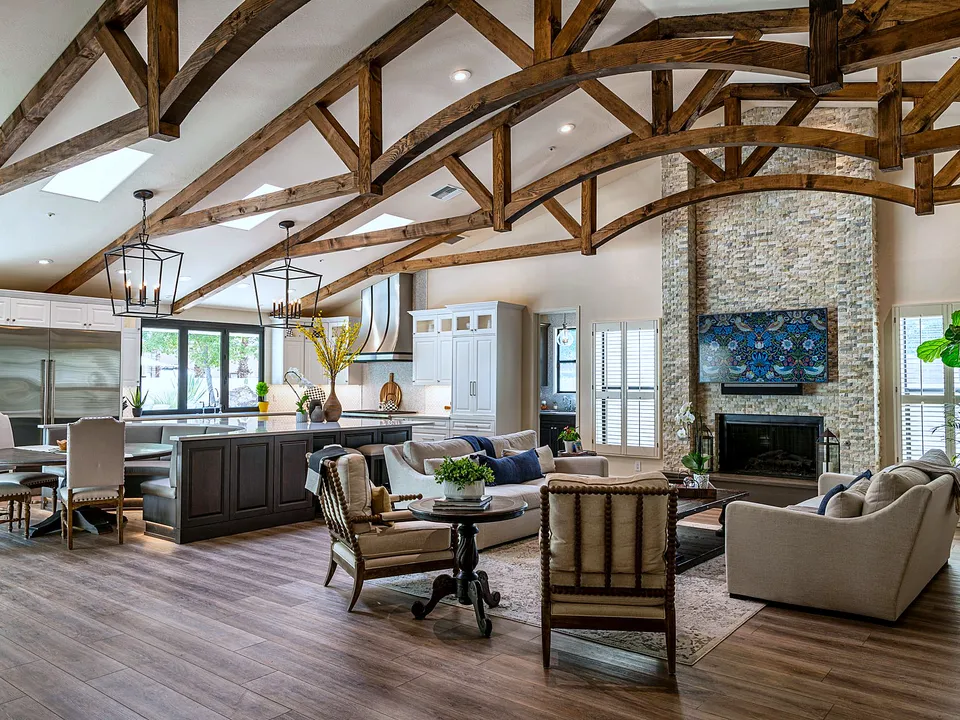

Wood and beamed ceilings

Exposed beams and wood ceilings are a big part of mid-century character. Cutting into them takes care, and wiring has to run along or between beams. In some rooms, track or surface-mounted cylinders look more natural than recessed lights, and we will say so.

Ceiling patching

Holes from old fixtures, test openings or moved lights are patched and painted so the ceiling looks clean.

What is above the ceiling

Mid-century homes in Monterey Park come in two main ceiling types. Flat ceilings with an attic above are the easiest for recessed lighting, because wiring can be run from above. Vaulted or beamed ceilings, often with tongue-and-groove boards and little or no space above, are much harder; there may be no room for a fixture, and wires may need to run in surface channels or along beams.

Before planning a layout, we check what is above the ceiling and where the joists run.

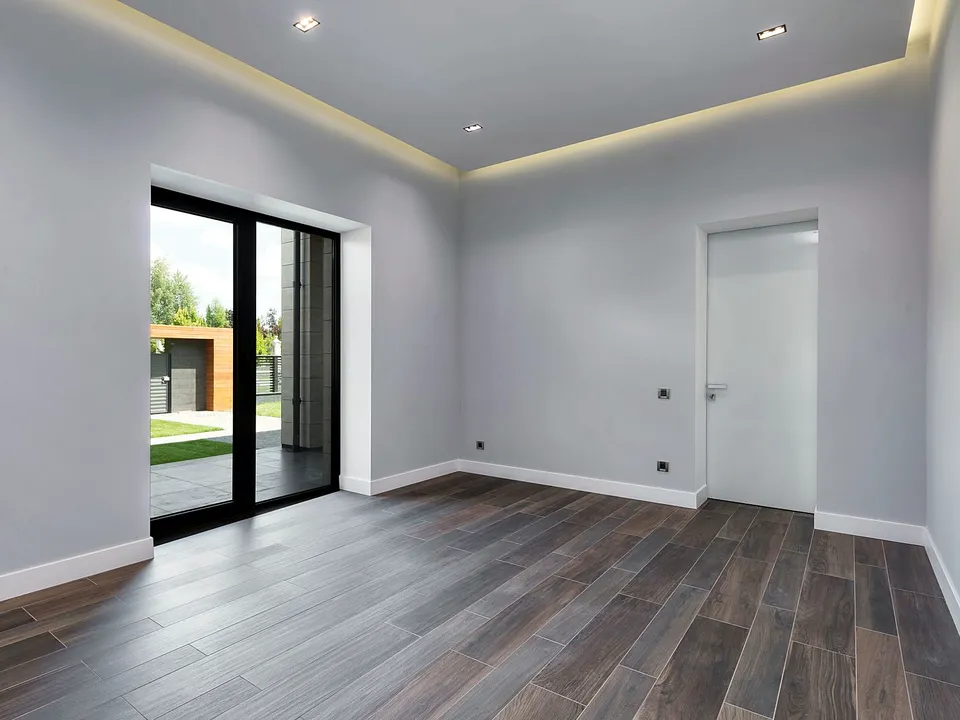

Canless LED fixtures

Modern canless or wafer LED fixtures are thin, mount in a round hole, and have a small junction box that sits on the ceiling's back. They need far less depth than old metal cans, they are rated for contact with insulation, and many are airtight, which keeps attic air out.

California's energy code requires high-efficacy lighting in homes, and these fixtures meet those rules when they are listed for it. Look for color temperature switches, dimmability, and a CRI of 90 or more.

Layout basics

A simple starting point is to divide the ceiling height by two to get spacing between fixtures; an eight-foot ceiling suggests lights around four feet apart. Keep fixtures about two to three feet from walls so the light washes the walls rather than making hard scallops.

Over kitchen counters, place lights so they fall in front of the person working, not behind them, to avoid casting shadows. Four-inch fixtures give general lighting; six-inch fixtures throw wider light.

Popcorn and older ceilings

Many homes from this era have acoustic or popcorn texture. Cutting into it creates dust, and texture applied before the mid-1980s may contain asbestos. Test before cutting any holes.

See our popcorn ceiling testing guide.

Wiring and circuits

Recessed lights are usually wired in a chain from a switch. We check that the circuit can carry the added fixtures, which is rarely an issue with LEDs, and that the switch is compatible with LED dimming. Cheap or older dimmers can cause flicker or buzzing with LED fixtures. Mid-century wiring is checked at every box we touch.

Our steps:

• Plan the layout and confirm joist locations
• Test texture if needed and protect the room from dust
• Cut holes with a hole saw sized for the fixture
• Run cable between fixture locations and the switch
• Connect each junction box and clip fixtures into place
• Install a compatible dimmer and test

Replacing old cans

If you already have old incandescent cans, LED retrofit trims screw into the existing socket and clip into the housing. They are fast and inexpensive, and they cut heat and energy use dramatically. If the old cans are not insulation-rated and the attic insulation has been pulled back from them, new airtight fixtures are the better long-term fix.

Pairing with other lighting

Recessed lighting is general lighting. Bathrooms still need good light at the mirror, covered in vanity lights and LED mirrors.

Patching after layout changes

When old ceiling fixtures are removed or a layout changes, holes and boxes are left behind. A box no longer needed should be kept accessible if it holds splices, or the wiring removed or properly terminated. Patching small holes in drywall is simple.

Plaster and textured ceilings take more care to blend. Planning layout around existing box locations saves patching.

Fewer, better lights

More holes is not always better. A few well-placed fixtures with good optics and dimming often light a room better than a grid of many lights. Mixing recessed light with a pendant, a ceiling fan light, or lamps keeps a mid-century room warm.

What our install involves

We plan, cut, wire, install and patch. See recessed lighting retrofit.
